Compressed Fibre Gasket for High Pressure Applications
Aramid fibre with special functional fillers bonded with elastomers

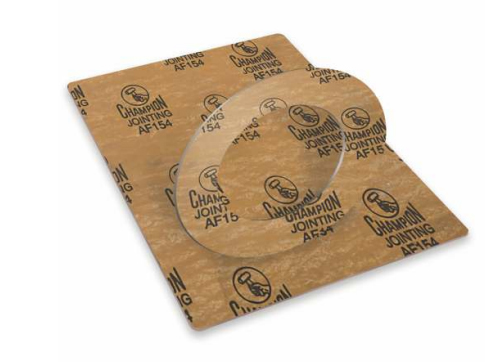

Champion Jointing Style AF 154 Super is special purpose BS7531 Grade-X asbestos-free (AF) Jointing sheet. It is blend of superior heat resisting compressed aramid fibres bonded with a combination of other functional fibres along with nitrile elastomeric binders.
Champion Jointing Style AF 154 Sheets are available in non-metallic and also in metallic option (with wire re-inforcement and anti-stick properties- which minimizes adhesion of the gasket to flange surfaces even at elevated temperatures, resulting in reduced removal time). This grade is produced in yellow color.
Applications :
Champion Jointing Style AF 154 Super is very popular as soft cut gasket for extreme industrial applications. Easily meets BS 7531 Grade-X requirements.
Service Media :
Suitable for use with solvents, gases, steam, dilute acids and alkalies. (high service conditions).
How Supplied :
Sheets, pre-cut gaskets, special density, thickness, shape or grade available on request.
