General Purpose Compressed Fibre Gasket
High Grade Fibre With Fillers and Binders

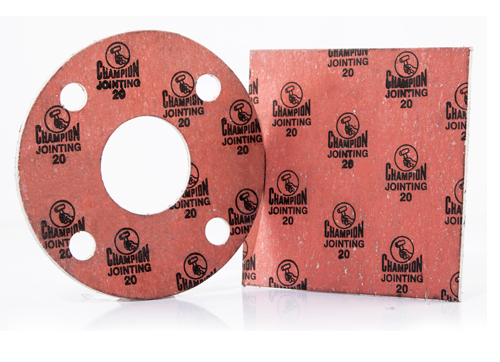

Champion Style 20 Red CAF Gasket is a consistently uniform and resilient product. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this ‘STEAM’ Jointing the choice packing of Plant
engineers and maintenance men for last 6 decades, one of the largest selling product in the world for gasket sheets.
Champion Style 20 Red CAF Gasket is available in non-metallic and also in metallic
option i.e with steel wire reinforced gauze
insertion and supplied with smooth anti stick
Graphite finish on the top. This grade is
produced in Red (non metallic) and
graphited black color
Applications : Champion Style 20 Red CAF Gasket
can be used as jointing for general
purpose, medium performance duties.
Preferred as gasket for liquid and gases in
low internal pressure and temperature.
Suitable for flanges with low bolt loading
conditions.
Service Media :
Corrosive / non-corrosive
gases, steam, condensate, water, air, oils,
solvents and a wide range of other media
(Low service conditions).
How Supplied :
Sheets, pre-cut gaskets, special density,
thickness, shape or grade available on
request.
|
Available Sheet Sizes in mm (+/- 5%) |
1600 mm x 4000 mm |
| 1500 mm x 2000 mm | |
| 1600 mm x 2000 mm | |
| 2000 mm x 4500 mm | |
|
Thickness (mm) |
0.5 mm; 0.75/0.8 mm; 1.0 mm; 1.5 mm; 2.0 mm; 3.0 mm; 4.0 mm; 5.0 mm |
| Description | Standard Specs | Typical Values |
|---|---|---|
| Density | DIN 28090-2 | 2.0-2.2 g/cm³ |
| Tensile Strength | IS 2712:1998 | ≥9.5 MPa / 95 Bar (1378 psi) |
| Compressibility | ASTM F 36 | 7% to 12% |
| Stress Relaxation | @40 MPa 16 hr/300°C-IS 6210 | ≥20 MPa / 200 Bar (2900 psi) |
| Gas Permeability | BS 7531 | <0.5 cc/min |
| Recovery | ASTM F 36 | ≥42.5% |
| Ignition Loss | DIN 52911 | ≤20% |
