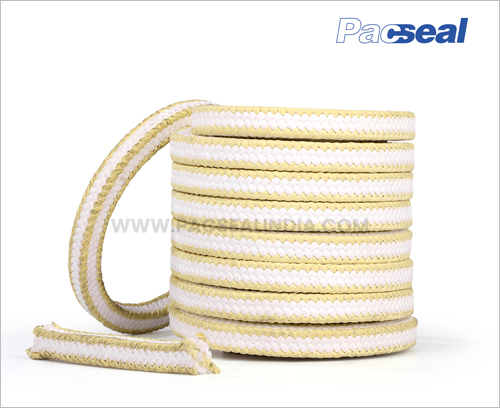

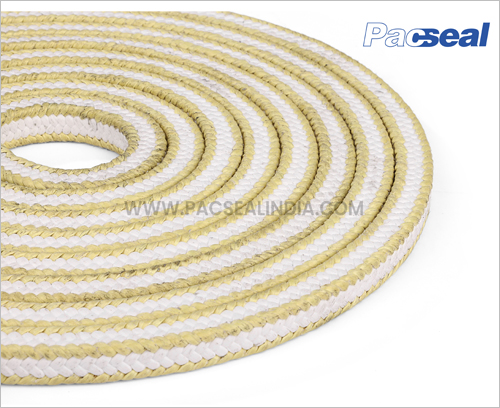

PACSEAL NA - 530 Pure PTFE With Aramid Corners

PTFE / Aramid Braided Packing

» Pacseal® NA 530 is Multi-yarn packing made from pure aramid fibres with corner of pure PTFE fibres at the running surface.

» The PTFE fibres yarns at the base provide excellent chemical resistance, low co-efficient of friction and virtually eliminate shaft scoring.

» The tough PTFE impregnated aramid fibre yarns at the corners provides superb extrusion, abrasion and pressure resistance, allowing the packing to be used at very high pressure conditions.

» Clean and non-toxic, can be used over a wide range of media including critical services that demand an extrusion resistant or reinforced packing.

Ideal in prepressed ring form

Service Media & Conditions :

Carbonate solution, ammonia compounds, chemicals, abrasives, slurries, sewage, water, oils, solvents, diluted acids and alkali etc.

Applications :

Plunger pumps, centrifugal shafts, mixers, agitators.

Temperature :

-212^oF (-100^oC) to +536^oF (+280^oC)

Pressure :

250 bar (static), 30 bar (rotary), 150 bar (Reciprocating)

pH :

2 - 13

Shaft Speed :

To 20 m/sec (rotary), To 10 m/sec (Reciprocating)
