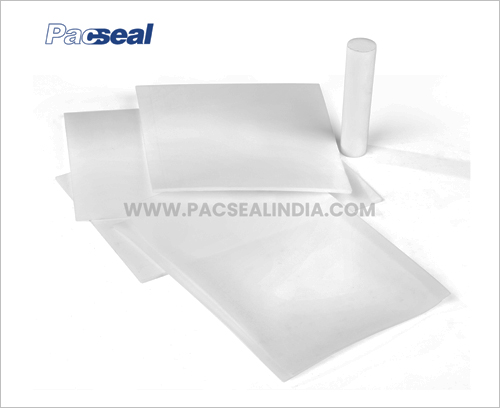

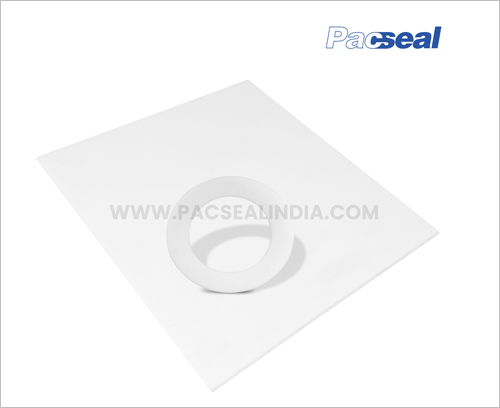

PACSEAL NA 11 PTFE Sheet
PACSEAL NA 11 PTFE Sheet
Request A Quote

» Pacseal® provides wide range of Moulded & Skived sheets in VIRGIN PTFE with available technologies.

» According to customers’ needs we suggest the most suitable solution with effective cost.

» In order to fulfilling customers’ needs, Pacseal® stock a wide range of moulded and extruded sheets in different sizes

Density 2 – 2.3 g/cm3
Tensile Strength 15 MPa
Elongation 150%
Temperature -180oc to 260oc

Thickness mm
Tollerance mm
Size mm
0.5
+0.03-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500
0.8
+0.04-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500
1
+0.05-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500
1.5
+0.1-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500
2
+0.2-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500
2.5
+0.25-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500
3
+0.3-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500
4
+0.4-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500
5
+0.5-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500
6
+0.6-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500

Thickness mm
Tollerance mm
Size mm
4
+0.8-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
5
+0.8-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
6
+0.8-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
8
+1.2-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
10
+1.2-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
12
+2-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
15
+2-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
20
+2-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
25
+2-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
30
+3-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
40
+3-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
50
+3-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
60
+3-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
70
+3-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
80
+3-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
90
+5-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
100
+5-0
600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000


Fuel B
Thickness Increase % = ≤ 10
Mass Increase %= ≤ 10
