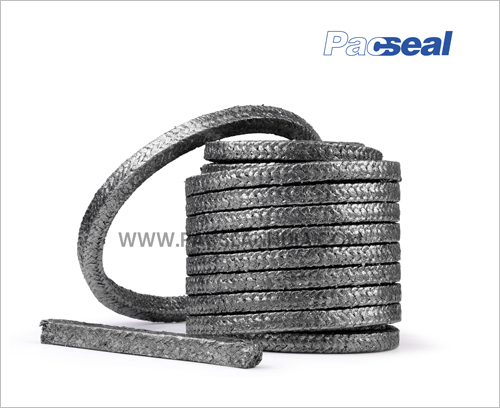

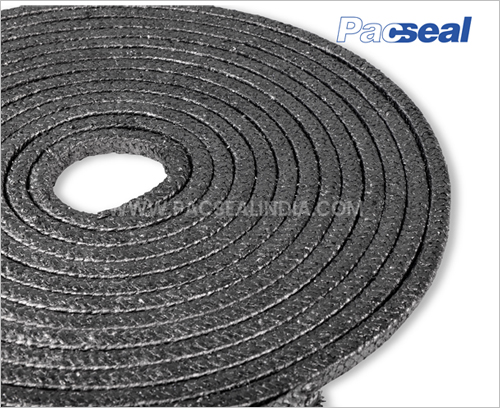

Expanded Graphite "Braided" Gland Packing Reinforced With SS Wire.
» It is a special pure graphite fibre yarn braided packing having carbon content 99.48% to 99.85%.
» Each yarn used in the packing is reinforced with SS wire, thoroughly incorporated with sacrificial corrosion inhibitor with a special lubricating agent on request.
» This formation ensures the packing to withstand extreme mechanical stress and cyclic loads.
» Special lubricating reduces stem friction and corrosion inhibitor prevents pitting due to the galvanic corrosion.
» Very high sealing efficiency even on oscillating valve stems without much wear and tear.
» The reinforcement of wire enhances the strength of the packing and also helps with stand high temperature and pressure.
» Excellent sealing under mechanical and thermal stress or cyclic loads. Low wear and tear means long sealing life. Emissions much below the EPI limits. Highly resistant to pressure extrusion.
Service Media & Conditions :
All non-oxidizing liquids and gasses, superheated and saturated steam, hot dry ash,
flue gasses, dyes and chemicals, emissive fluids, fuel oil and lube oil,
hydrocarbons, etc.
Temperature :
-328o F (-200oC) to +850oF (+455oC) Atmosphere To 1200oF (+650oC) Steam
Pressure :
To 4000 PSI / 275 Bar
pH :
0 - 14
Shaft Speed :
To 4800 fpm (rotary) / T o 23 m/sec (rotary)
