Compressed fibre jointing sheet with premium binders and fillers

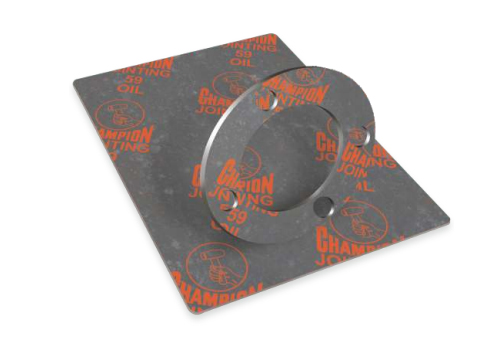

Champion Style 59 Oil Premium is manufactured from premium grade fibre and compounded with specialized elastomers under special curing process to withstand the most exacting demands of oil related applications.
Champion Style 59 Oil Premium jointing sheets are developed for superior performance for severely critical applications and this quality is applicable to a wide range of duties with severe working conditions of temperature and pressure.
Applications :
Champion Style 59 Oil Premiumcan be used as high-performance jointing sheet for high temperature and pressure applications related to oil, grease, lubricant, petrochemical, solvent applications.
Service Media :
This gasket is recommended for distillates, oil refining, industrial processes with high contents of aromatic substances, sulphurous compounds, chloric hydrocarbons, phenols, refrigerants.
How Supplied :
Sheets, pre-cut gaskets, special density, thickness, shape or grade available on request.
| Available Sheet Sizes in mm (+/- 5%) | 1600 mm x 4000 mm |
|---|---|
| 1500 mm x 2000 mm | |
| 1600 mm x 2000 mm | |
| 2000 mm X 6000 mm | |
| Thickness (mm) | 0.5 mm; 0.75 mm; 1.0 mm; |
| 1.5 mm; 2.0 mm; 3.0 mm; | |
| 4.0 mm**; 5.0 mm** |
| Description | Standard Specs | Typical Values |
|---|---|---|
| Density | DIN 28090-2 | 1.9-2.2 g/cm2 |
| Tensile Strength | IS 2712:1998 | ≥28 MPa /280 Bar (4061 psi) |
| Compressibility | ASTM F 36 | 7% to 10.5% |
| Stress Relaxation | @40 MPa16 hr/300°C-IS 6210 | ≥30 MPa /300 Bar (4351 psi) |
| Gas Permeability | BS 7531 | <0.5 cc/min |
| Recovery | ASTM F 36 | ≥50% |
| Ignition Loss | DIN 52911 | ≤25% |
