High grade fibre with premium grade of fillers and binders

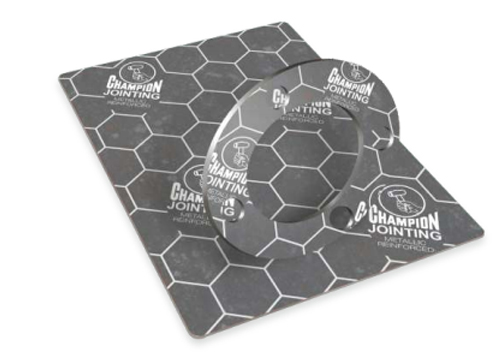

Champion Style 55 Universal Gasket is a premium grade high temperature, pressure resistance compressed fiber jointing sheet manufactured with a proprietary formulation of premium quality raw materials.
Champion Style 55 Universal Gasket is available in non-metallic and also in metallic option i.e with SS wire reinforced gauze insertion (min 18 mesh x 30 gauge) and supplied with smooth anti stick Graphite finish on the top. This grade is produced in dark grey / black color.
Applications :
Champion Style 55 Universal Gasket has can be used as extreme performance jointing sheet over rapidly changing operating conditions of pressure, where vibrations are experienced, flange of the gasket joint is narrow.
Preferred as gasket of choice for boiler applications, air compressors, cylinder head gaskets, internal combustion engines.
Service Media :
High pressure steam, vaccum, hydrocarbons, gases, solvents, alcohols, dyes etc.
How Supplied :
Sheets, pre-cut gaskets, special density, thickness, shape or grade available on request.
| Available Sheet Sizes in mm (+/- 5%) | 1600 mm x 4000 mm |
|---|---|
| 1500 mm x 2000 mm | |
| 1600 mm x 2000 mm | |
| 2000 mm X 6000 mm | |
| Thickness (mm) | 0.4/0.5 mm; 0.75/0.8 mm; |
| 1.0 mm; 1.5 mm; 2.0 mm; | |
| 3.0 mm; 4.0 mm**; 5.0 mm** |
| Description | Standard Specs | Typical Values |
|---|---|---|
| Density | DIN 28090-2 | 2.0-2.2 g/cm2 |
| Tensile Strength | IS 2712:1998 | ≥33 MPa / 330 Bar (4786 psi) |
| Compressibility | ASTM F 36 | 7% to 11% |
| Stress Relaxation | @40 MPa16 hr/300°C-IS 6210 | ≥32 MPa / 320 Bar (4640 psi) |
| Gas Permeability | BS 7531 | <0.5 cc/min |
| Recovery | ASTM F 36 | ≥50% |
| Ignition Loss | DIN 52911 | ≤23% |
