PAC-RTJ - Ring Type Join Gasket
PAC-RTJ
PAC-RTJ excels in high-pressure applications such as oil and gas exploration and production. RTJs are also used on valves and pipework assemblies in refineries and other process industries. Available in both oval and octagonal profiles, standard style R Ring Type Join Gaskets are manufactured to meet both API 6A and ASME B16.20 sizes and ratings. Also available are Style RX Ring Type Join Gaskets which energizes on
assembly. This type is designed to fit the same groove as a style R therefore making them interchangeable. For very high pressures, often found in sub-sea wellhead and Christmas tree systems, the style BX is used. Subsea versions of all styles are available with pressure balance holes. We also design and manufacture special RTJ and bespoke solid metal gaskets for topside and subsea blow-out
preventers.

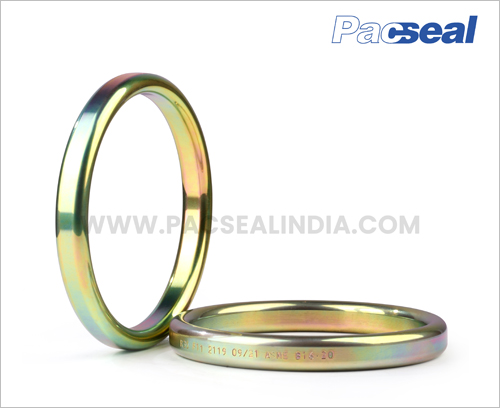

RTJ RX
Both styles are interchangeable on the modern flat bottom groove, however only the oval style can be used in the old type round bottom groove.
Style RX Ring Type Join Gaskets are designed to seal pressure up to 6,250 psi in accordance with ASME B16.5 pressure ratings and up to 5,000 psi in accordance with API 6A pressure ratings.We can also offer Style SRX Octagonal RTJ's which have two pressure passage holes making the gasket suitable for subsea installation.

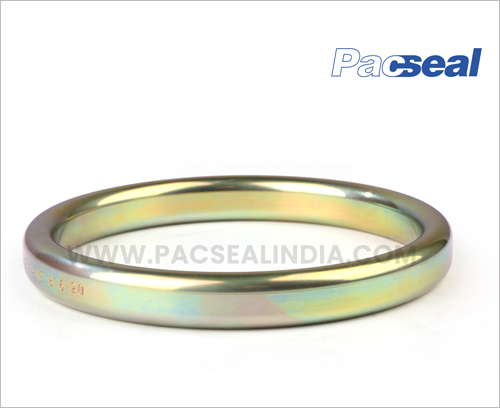

RTJ R
Both styles are interchangeable on the modern flat bottom groove, however only the oval style can be used in the old type round bottom groove.
Style R Ring Type Join Gaskets are designed to seal pressure up to 6,250 psi in accordance with ASME B16.5 pressure ratings and up to 5,000 psi in accordance with API 6A pressure ratings.
RTJ BX
On assembly, metal to metal contact of the flange faces is achieved. The Style BX is not interchangeable with any other style, and is only suited for API 6BX flanges. Style BX Ring Type Join Gaskets are designed to seal pressure up to 20,000 psi in accordance with API 6A pressure ratings. We can also offer Style SBX RTJ's which have two pressure passage holes making the gasket suitable for subsea installation.
