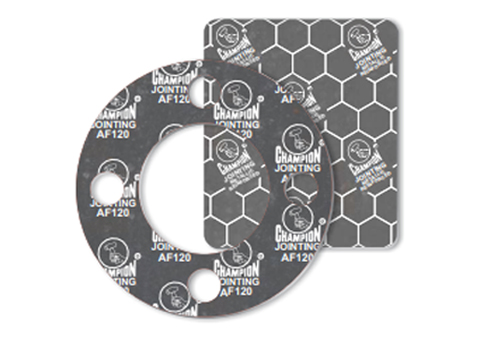

Champion Style AF120 Metallic Gasket is made from compressed aramid fibres, bonded with a combination of other functional fibres and an elastomer binder. It features a steel wire-reinforced gauze insertion and is supplied with a smooth, proprietary anti-stick graphite finish on the top. This gasket is suitable for general-purpose steam and vapour applications.
Identity Colour :
GRAPHITED BLACK with Anti-Stick Coating
Temperature :
Maximum Short-Term Service Temperature :
400°C / 725°F
Maximum Continuous Service Temperature :
250°C / 482°F
Pressure :
Maximum Pressure :
6 MPa / 60 Bar (870 psi)
Guidelines For Application: :
- General Suitability
- Consultation is recommended
- Technical consultation is mandatory
Always refer chemical resistance of gasket to the media.
