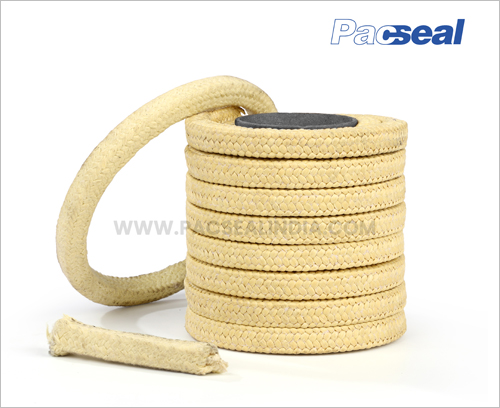

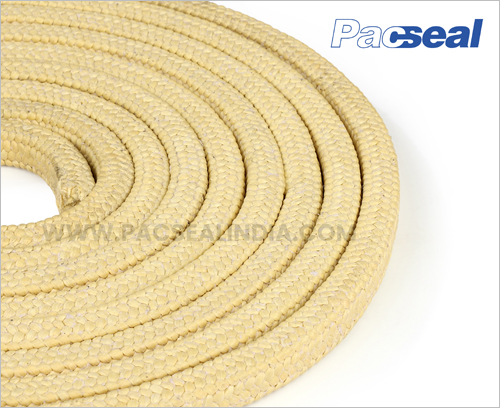

Pure Aramid Fibre Braided Packing
» Pacseal® NA 55 is one of the best sealing solution for abrasive media such as juice (sugar), slurries, fly ash, ash slurry etc.
» High degree of resiliency and consistency of volume.
» Special PTFE impregnation process to avoid shaft erosion and start up friction.
» Interlock braiding for high pressure and extrusion resistance.
Available in rope and ring forms
Service Media & Conditions :
Magma, juice pumps, stock, ash slurry, mud slurry, fly ash water, sewage, highly abrasive bleach or wood pulp, wash water, raw water and turbid water, chemical slurries etc.
Applications :
Pump, agitators.
Temperature :
-212oF (-100oC) to +536oF (+280oC)
Pressure :
200 bar (static), 35 bar (rotary), 200 bar (Reciprocating)
pH :
1 - 13
Shaft Speed :
To 20 m/sec (rotary), To 10 m/sec (Reciprocating)
