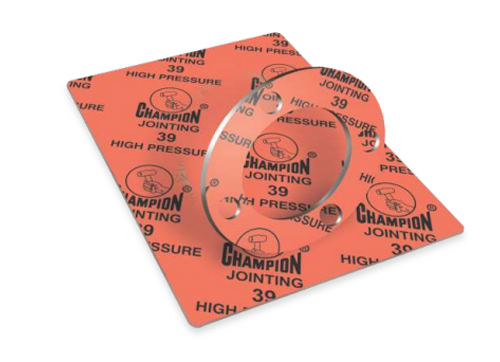

Compressed fibre jointing sheet with special fillers and binders
Champion Style 39 Oil is manufactured from premium grade fibre and compounded with specialized elastomers under special curing process to withstand the most exacting demands of oil and steel applications.
Champion Style 39 Oil Jointing Sheets are developed for severely critical applications and this quality is applicable to a wide range of duties with severe working conditions of temperature and pressure.
Applications :
Champion Style 39 Oil can be used as medium-performance jointing sheet for high temperature and pressure applications related to petrochemicals, distillates, refineries and process industry.
Service Media :
Suitable for applications against dry, wet steam / water, gases, alkalies, oil at non critical temperature, non corrosive chemicals, fuels and general engineering.
How Supplied :
Sheets, pre-cut gaskets, special density, thickness, shape or grade available on request.
| Available Sheet Sizes in mm (+/- 5%) | 1600 mm x 4000 mm |
|---|---|
| 1500 mm x 2000 mm | |
| 1600 mm x 2000 mm | |
| 2000 mm X 6000 mm | |
| Thickness (mm) | 0.5 mm; 0.75 mm; 1.0 mm; |
| 1.5 mm; 2.0 mm; 3.0 mm; | |
| 4.0 mm**; 5.0 mm** |
| Description | Standard Specs | Industrial Grade |
|---|---|---|
| Density | DIN 28090-2 | 1.9-2.2 g/cm2 |
| Tensile Strength | IS 2712:1998 | ≥18 MPa /180 Bar (2610 psi) |
| Compressibility | ASTM F 36 | 7% to 12% |
| Stress Relaxation | @40 MPa16 hr/300°C-IS 6210 | ≥23 MPa /230 Bar (3335 psi) |
| Gas Permeability | BS 7531 | <0.5 cc/min |
| Recovery | ASTM F 36 | ≥45% |
| Ignition Loss | DIN 52911 | ≤22% |
