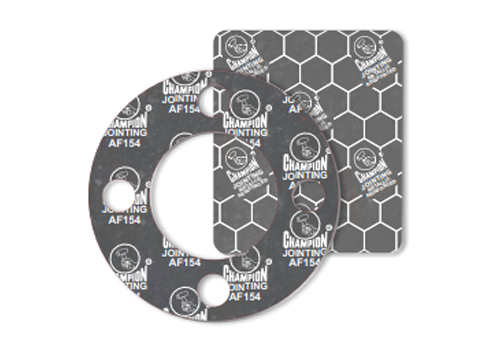

Champion Jointing Style AF154 Metallic is a blend of heat - resistant compressed aramid fibres bonded with other functional fibres and nitrile elastomer binders. Featuring steel wire reinforcement, it forms a stable matrix with anti-stick properties that minimize gasket adhesion to flange surfaces - even at high temperatures - reducing removal effort. Suitable for high-pressure steam applications.
Identity Colour :
GRAPHITED BLACK with Anti-stick Coating
Temperature :
Maximum Short-Term Service Temperature :
450°C / 810°F
Maximum Continuous Service Temperature :
300°C / 572°F
Pressure :
Maximum Pressure :
16 MPa / 160 Bar (2321 psi)
Specification Compliance :
(BS 7531:2006 Grade-X), (IS 17796:2022 Grade-X)
Guidelines For Application: :
- General Suitability
- Consultation is recommended
- Technical consultation is mandatory
Always refer chemical resistance of gasket to the media.
