Premium grade fibre with heat resisting fillers and binders

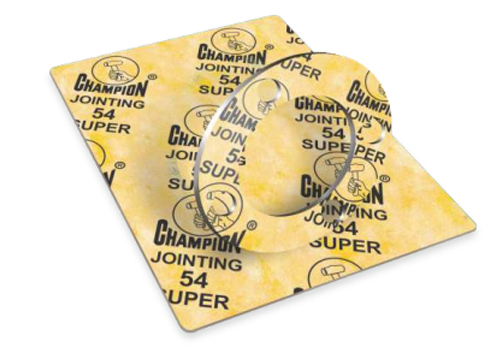

Champion Style 54 Super Gasket is a premium grade high temperature, pressure resistance compressed fiber jointing sheet manufactured with a proprietary formulation of premium quality raw materials.
Champion Style 54 Super Gasket is available in non-metallic and also in metallic option i.e with steel wire reinforced gauze insertion (min 18 mesh x 30 gauge) and supplied with smooth anti stick Graphite finish on the top. This grade is produced in yellow (non metallic) and graphited black color.
Applications :
Champion Style 54 Super Gasket has can be used as high performance jointing sheet primarily a super heated steam gasket.
Preferred as gasket of industry choice for boiler applications, air separation units, petroleum distillates, oil refineries, diesels generators, marine engines etc.
Service Media :
Super heated steam, vaccum, hydrocarbons, gases, solvents, alcohols, dyes etc.
How Supplied :
Sheets, pre-cut gaskets, special density, thickness, shape or grade available on request.
| Available Sheet Sizes in mm (+/- 5%) | 1600 mm x 4000 mm |
|---|---|
| 1500 mm x 2000 mm | |
| 1600 mm x 2000 mm | |
| 2000 mm X 6000 mm | |
| Thickness (mm) | 0.5 mm; 0.75 mm; 1.0 mm; |
| 1.5 mm; 2.0 mm; 3.0 mm; | |
| 4.0 mm**; 5.0 mm** |
| Description | Standard Specs | Typical Values |
|---|---|---|
| Density | DIN 28090-2 | 2.0-2.2 g/cm2 |
| Tensile Strength | IS 2712:1998 | ≥28 MPa / 280 Bar (4061 psi) |
| Compressibility | ASTM F 36 | 7% to 11% |
| Stress Relaxation | @40 MPa16 hr/300°C-IS 6210 | ≥28 MPa / 280 Bar (4061 psi) |
| Gas Permeability | BS 7531 | <0.5 cc/min |
| Recovery | ASTM F 36 | ≥50% |
| Ignition Loss | DIN 52911 | ≤25% |
