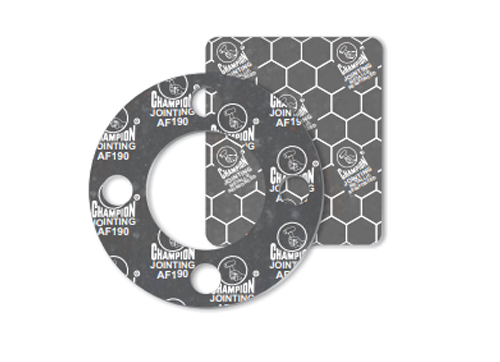

Champion Jointing Style AF190 Metallic is a blend of premium-grade synthetic aramid fibres, heat-dissipating graphite, and carbon, bonded with HNBR elastomers, additives, and specialty chemicals. It features stainless steel wire reinforcement to create a stable matrix with anti - stick properties, minimizing gasket adhesion to flange surfaces - even at elevated temperatures - resulting in reduced removal time. Highly recommended as a universal metallic gasket for all critical applications, except those involving acids.
Identity Colour :
GRAPHITED BLACK COLOR
Temperature :
Maximum Short-Term Service Temperature :
500°C / 932°F
Maximum Continuous Service Temperature :
300°C / 572°F
Pressure :
Maximum Pressure :
17 MPa / 170 Bar (2465 psi)
Specification Compliance :
(BS 7531:2006 Grade-X), (IS 17796:2022 Grade-X)
