Compressed fibre jointing sheet with fillers and binders

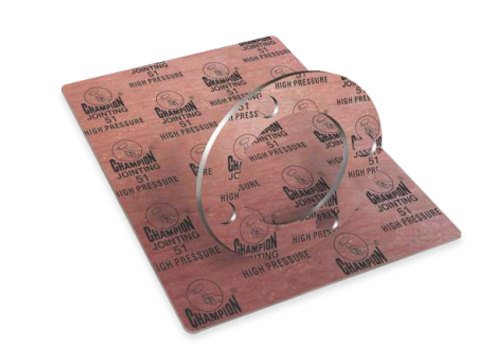

Champion Style 51 High Pressure Gasket is manufactured from premium grade fibre and compounded with specialized elastomers under special curing process to withstand the most exacting demands of high pressure gases and steam related applications.
Champion Style 51 High Pressure Gasket are developed for severely critical applications and this quality is applicable to a wide range of duties with severe working conditions of temperature and pressure.
Applications :
Champion Style 51 High Pressure Gasket can be used as mediumperformance jointing sheet for high temperature and pressure applications related to petrochemicals, distillates, refineries and process industry.
Service Media :
Recommended for steam, neutral non-flammable gases, dyes alkalies, fats, oils, alcohols, motor fuels and other such engineering service conditions which do not warrant the use of a high grade material such as Champion Style 54 Super
How Supplied :
Sheets, pre-cut gaskets, special density, thickness, shape or grade available on request.
| Available Sheet Sizes in mm (+/- 5%) | 1600 mm x 4000 mm |
|---|---|
| 1500 mm x 2000 mm | |
| 1600 mm x 2000 mm | |
| 2000 mm X 6000 mm | |
| Thickness (mm) | 0.5 mm; 0.75 mm; 1.0 mm; |
| 1.5 mm; 2.0 mm; 3.0 mm; | |
| 4.0 mm**; 5.0 mm** |
| Description | Standard Specs | Typical Values |
|---|---|---|
| Density | DIN 28090-2 | 1.9-2.2 g/cm2 |
| Tensile Strength | IS 2712:1998 | ≥15 MPa /150 Bar (2175 psi) |
| Compressibility | ASTM F 36 | 7% to 12% |
| Stress Relaxation | @40 MPa16 hr/300°C-IS 6210 | ≥23 MPa / 230 Bar (3335 psi) |
| Gas Permeability | BS 7531 | <0.5 cc/min |
| Recovery | ASTM F 36 | ≥45% |
| Ignition Loss | DIN 52911 | ≤22% |
