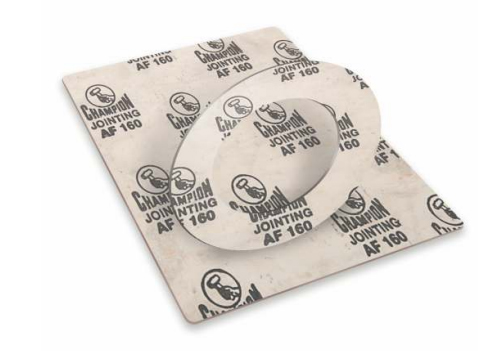

Champion Gasket Style AF 160

Champion Gasket Style AF 160
Request A Quote

Compressed fibre jointing sheet with chemical resistant binder

Compressed fibre jointing sheet with chemical resistant binder

Champion Style AF 160 Acid is special purpose BS7531 Grade-X Asbestos-Free (AF) Jointing sheet. This chemical resisting compressed fibre jointing sheet contains aramid fibres bonded with a special combination of binders consisting of synthetic elastomer (NBR) and additives.

Champion Style AF 160 Acid gaskets are manufactured in non-metallic version (that is, without wiremesh reinforcement). This gasket is manufactured in off-white (cream) color.

Applications :

Champion Style AF 160 Acid Gasket is commonly used for all acid and chemical resistant applications..

Service Media :

Suitable for use in organic, concentrated acids, alkali, chemicals to withstand corrosive media applications.

How Supplied :

Sheets, pre-cut gaskets, special density, thickness, shape or grade available on request.

Description
Standard Specs
Typical Values
Density
DIN 28090-2
1.8-2.0 g/cm3
Tensile Strength
ASTM F 152
≥15 MPa / 150 Bar (2175 psi)
Compressibility
ASTM F 36
8% to 12%
Residual Stress
BS 7531
≥25 MPa /250 Bar (3625 psi)
Gas Permeability
BS 7531
<0.1 cc/min
Recovery
ASTM F 36
≥50%
Water Absorption
BS 7531
≤5%
Ignition Loss
DIN 52911
≤35%

Available Sheet
Sizes in mm
(+/- 5%)		 1600 mm x 1500 mm
1500 mm x 2000 mm
1600 mm x 4500 mm
2000 mm X 6000 mm
Thickness(mm) 0.4/0.5 mm; 0.75/0.8 mm; 1.0 mm; 1.5 mm; 2.0 mm;3.0 mm; 4.0 mm; 5.0 mm

Description
Standard Specs
Typical Values
Weight Increase
ASTM Oil No.3 : 5hr/150°C(300°F)
<10%
ASTM Fuel B : 5hr/23°C(73.4°F)
<10%
Thickness Increase
ASTM Oil No.3 : 5hr/150°C(300°F)
<10%
ASTM Fuel B : 5hr/23°C(73.4°F)
<10%
