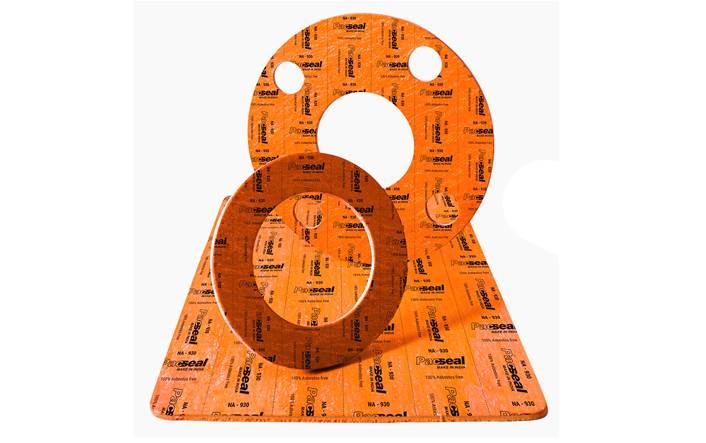

A high quality jointing sheet based on synthetic Aramid fibres
bonded with NBR elastomer.
Service conditions : Suitable for use in application involving hydrocarbons such as oils and solvents, steam, gases, glycols and aqueous solutions. (Medium Service Conditions)
| Density: | 1.70 – 2.00 g/cm3 |
| Tensile Strength (Across Grain): | 14 MPa (ASTM F 152) |
| Compressibility: | 8-12 % (ASTM F 36) |
| Residual Stress: | 22 MPa (BS 7531) |
| Gas Permeability: | <0.5 cc/Min (BS 7531) |
| Recovery: | ≥ 45 % (ASTM F 3) |
| Water Absorption: | ≤ 5 % (BS 7531) |
| Sealability Against Nitrogen: | ≤ 35 % |
| Max. Operating Pressure: | 80 bars |
| Max. Peak Temperature: | 400°C |
| Max. Continuous Temperature: | 250°C |
| ASTM Oil No. 3 | |
| Thickness Increase % = ≤08 | |
| Mass Increase %= ≤ 08 | |
| Fuel B | Thickness Increase % = ≤08 |
| Mass Increase %= ≤08 |
