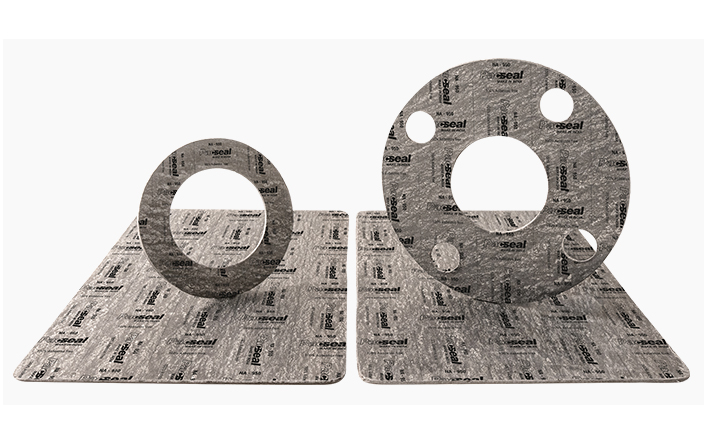

A Premium grade jointing sheet based on Aramid fibre, mineral fibre,
NBR, High performance Hot oils, Hydrocarbons and Refrigerants
resistant.
Service conditions : A universal grade for high loading, excellent
thermal, chemical & mechanical properties, For compressors, pipe-lines, gas meters and internal combustion engines pipeunions, pumps
etc. (High Service Condition)
| Density: | 1.70 – 2.00 g/cm3 |
| Tensile Strength (Across Grain): | 15 MPa (ASTM F 152) |
| Compressibility: | 10-15 % (ASTM F 36) |
| Residual Stress: | 25 MPa (BS 7531) |
| Gas Permeability: | <0.1 cc/Min (BS 7531) |
| Recovery: | ≥ 45 % (ASTM F 3) |
| Water Absorption: | ≤ 5 % (BS 7531) |
| Sealability Against Nitrogen: | ≤ 35 % |
| Max. Operating Pressure: | 150 bars |
| Max. Peak Temperature: | 450°C |
| Max. Continuous Temperature: | 300°C |
| ASTM Oil No. 3 | |
| Thickness Increase % = ≤ 08 | |
| Mass Increase %= ≤ 08 | |
| Fuel B | Thickness Increase % = ≤ 08 |
| Mass Increase %= ≤ 08 |
